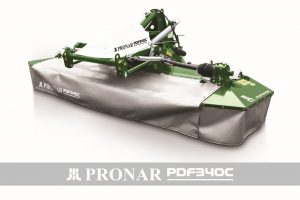

Disc mower PRONAR PDF340C

The PRONAR PDF340C disc mower is a front-mounted mower with swath conditioner mounted on the front three-point linkage. To operate the mower, the tractor must be equipped with a front three-point linkage and one hydraulic section. The mowing width is as large as 3.4 m, which significantly increases the efficiency and functionality of the machine. The PRONAR PDF340C disc mower is designed primarily for mowing on difficult and uneven terrain. Its main component is a durable and reliable PRONAR cutter bar, which is equipped with an additional stiffening profile enclosed in the cutter bar body. A sturdy machine design is based on modern materials and production technologies. Safety of use is ensured by a 1200 Nm friction overload clutch. With its very flexible ground surface tracking, the PRONAR PDF340C disc mower can cope with all conditions, while maintaining excellent mowing quality. The mowing capacity at a speed of 10 km/h is 3.4 ha/h. A tractor with a power of at least 95 HP is required to drive the PRONAR PDF340C disc mower.

Technical specification of standard equipment
Total width in working position 4000 mm
Lenght in working position 1800 mm
Width in transport position (raised side protections) 3400 mm
Working width 3400 mm
Swath width min/max 1400 / 2040 mm
Empty weight 1300 kg
Min. power requirement 70/95 kW/HP
Efficiency ( for recommended working width) 3,4 ha/h
PTO speed 1000 rpm/min
Suspension Front linkage cat. II acc. to ISO 730-1
Number of disc 8
Number of knives 16
left 8
right 8
Type of cuting knives twisted
Knives dimensions 120x49x4 Ø21 mm
Rotationspeed of discs 3000 rpm/min
Recommended working speed 10 km/h
Ground following ability
up +14 (450) º (mm)
down -10 (250) º (mm)
transverse +/- 24 º
Transport position – horizontally at the front of the tractor Raised on mowers cylinder and linkage
Required hydraulic output Hydraulic connection at the front of the tractor
Swath conditioner drive
PTO shaft Standard
Additional set of knifes Standard
Spray RAL 6010  400 ml Standard



Additional equipment:
Tube for documents
Connecting to reverse PTO shaft (CW or CCW direction)
