Trailer PRONAR T669

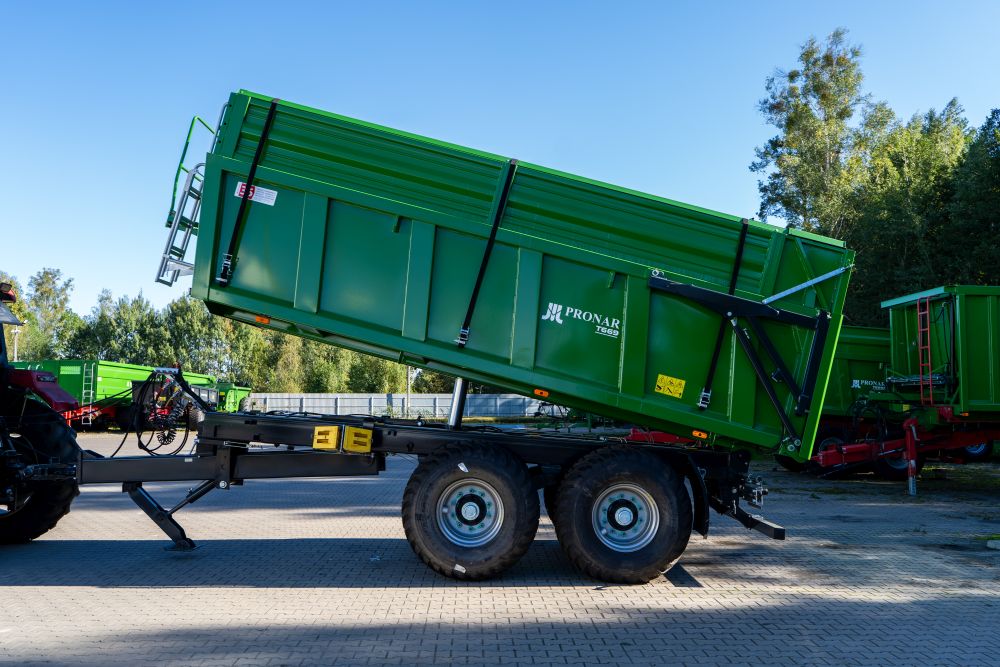

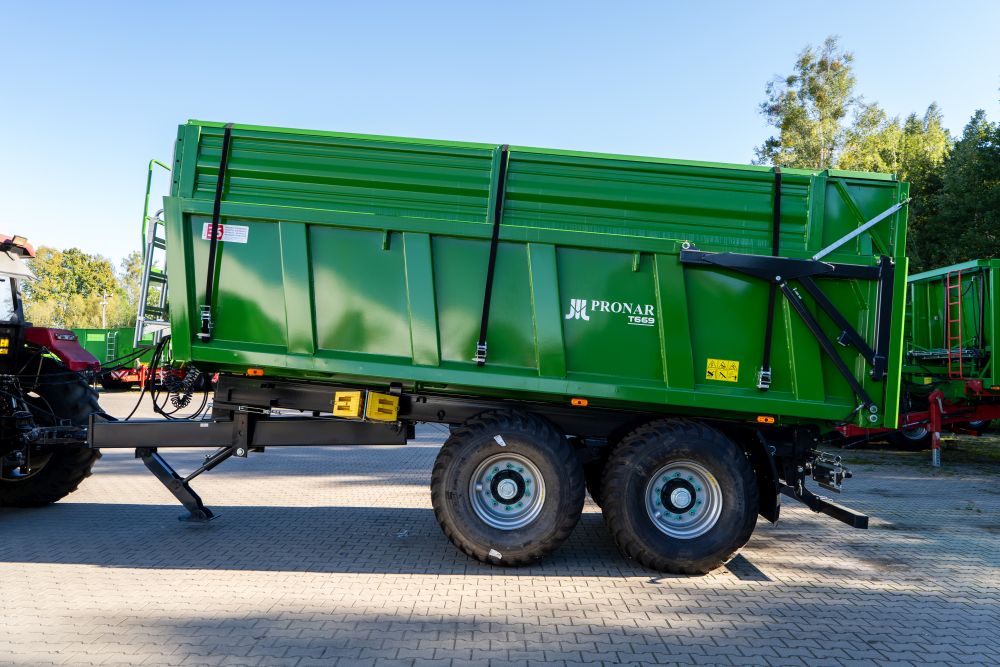

The monocoque PRONAR trailer T669 is intended to work under hard conditions. Tight, solid construction of the loading case enables to transport even tiny grains without any additional sealing. The grain hatch placed in the rear wall facilitates unloading and connection to the other more precise and efficient unloading equipment which is very important while transporting low density materials. Tandem suspension ensures increase pulling force thanks to additional weight placed on the rear axle. High tonnage load capacity will be well appreciated by all users.
-
1FUNCTIONALEnables different types of materials transport.
-
2DURABLEClosed profiles used by PRONAR ensure durability and resistance of the construction.
-
3TIGHTHigh quality loading case ensures even tiny grains transport.
-
4UNIVERSALOptional three way tipping system increases functionality of the trailer.
-
5WIDE RANGE OF THE OPTIONAL EQUIPMENTCustomer can order optional equipment which will increase functionality of the trailer.
| Technical data | ||
| Allowable total weight (technically): | 21000 | [kg] |
| Permissible total weight: | 20000 | [kg] |
| Load capacity: | 14320 | [kg] |
| Empty weight: | 5680 | [kg] |
| Load volume with extensions height 580mm /without extensions: | 22.7 / 15 | [m 3] |
| Loading space: | 12.4 | [m 2] |
| Loading case inside length: | 5500 | [mm] |
| Loading case inside width: | trapezoid: 2200/2250 | [mm] |
| Dimensions: length/width/height: | 7255/2550/3160 | [mm] |
| Sidewall height: | 1200+580 | [mm] |
| Floor/wall thickness: | 5/4 | [mm] |
| Platform height, measured from the ground: | 1435 | [mm] |
| Wheel track: | 1960 | [mm] |
| Suspension: | parabolic springs | |
| Hitch-ring load: | 2000 | [kg] |
| Tyres: | 385/65 R22.5 RE | |
| Maximum speed: | 40 | [km/h] |

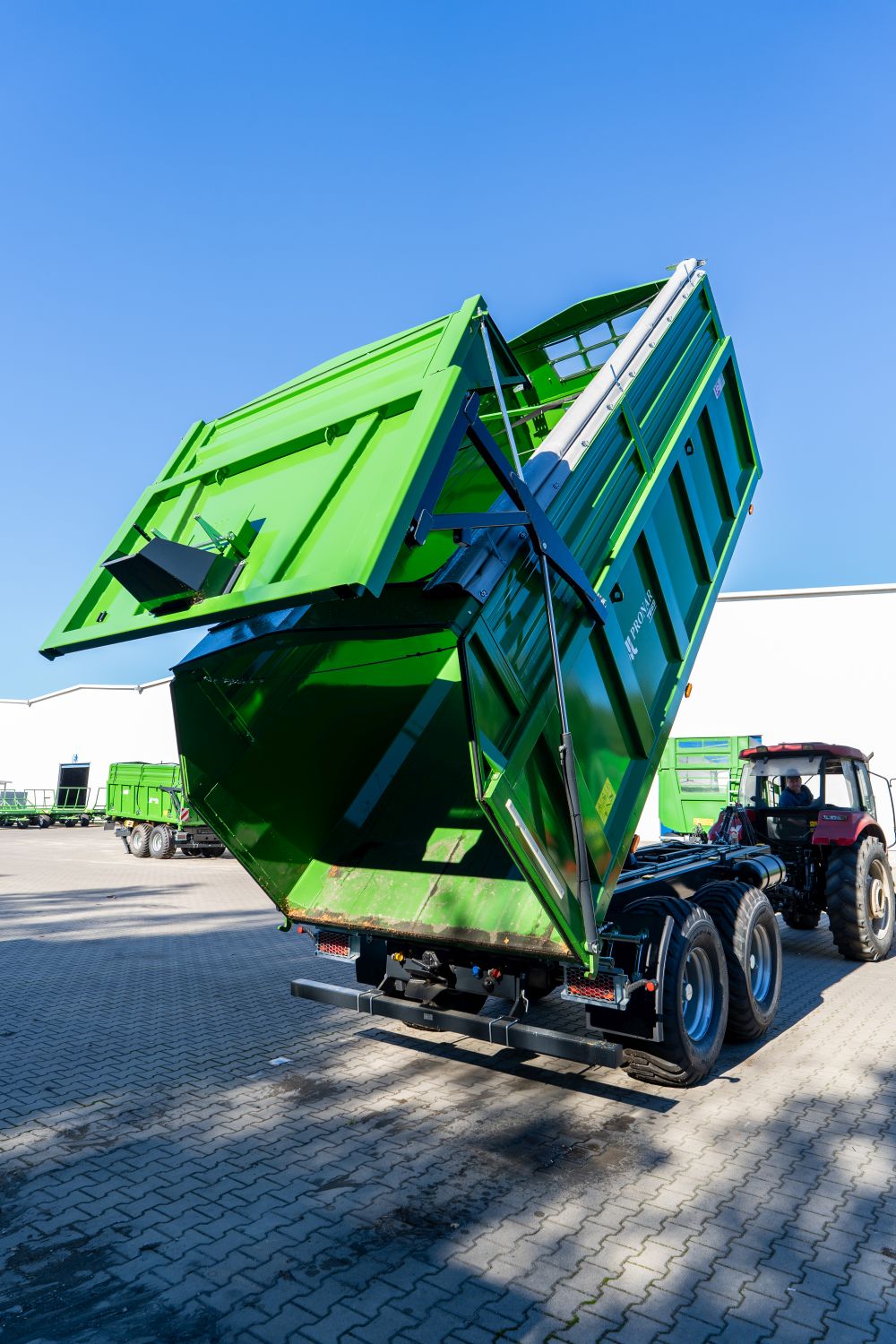

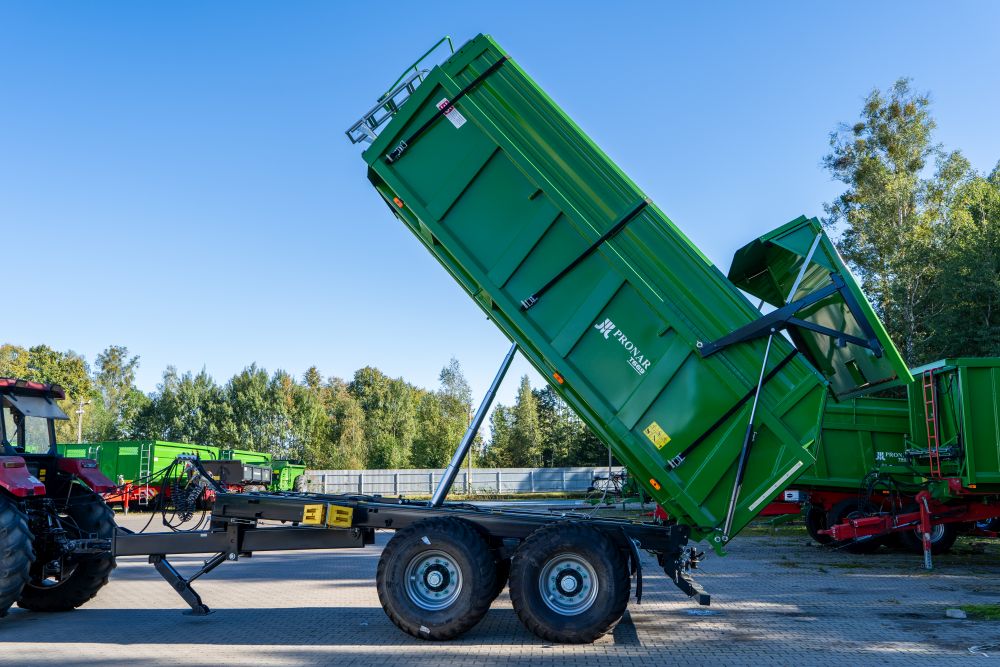

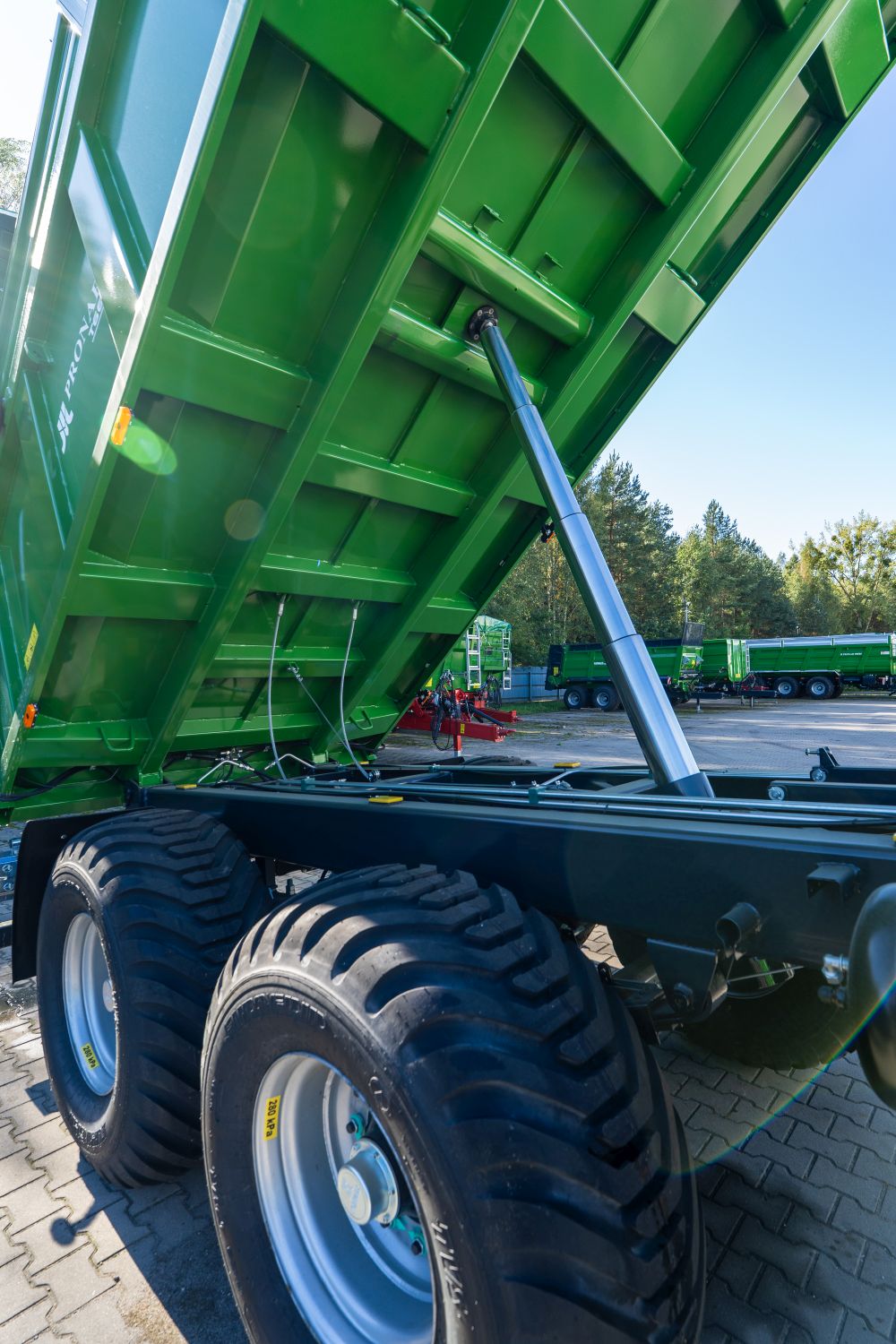

| Tipping system: | 1-side | |
| Tipping cylinder (piston stroke/oil requirement/working pressure) | 2400mm/29L/200bar | |
| Tractor power requirement: | 104/76,4 | [hp/kW] |
| Tipping angle (backwards): | 50 | [˚] |
| Standard equipment | ||
| Monocoque loading case with vertical ribs reinforcing the sidewalls | ||

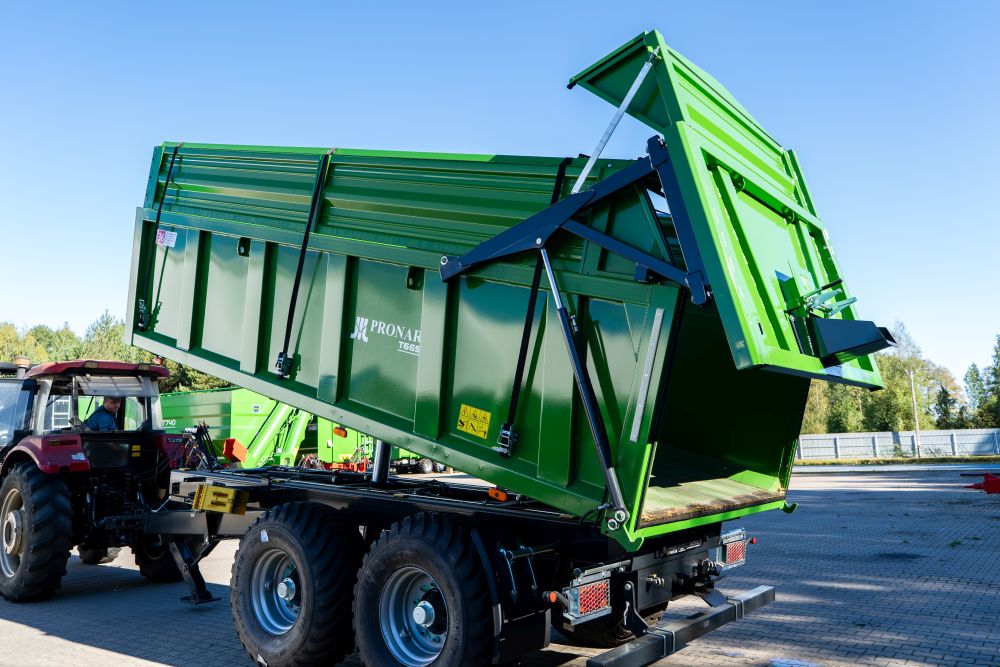

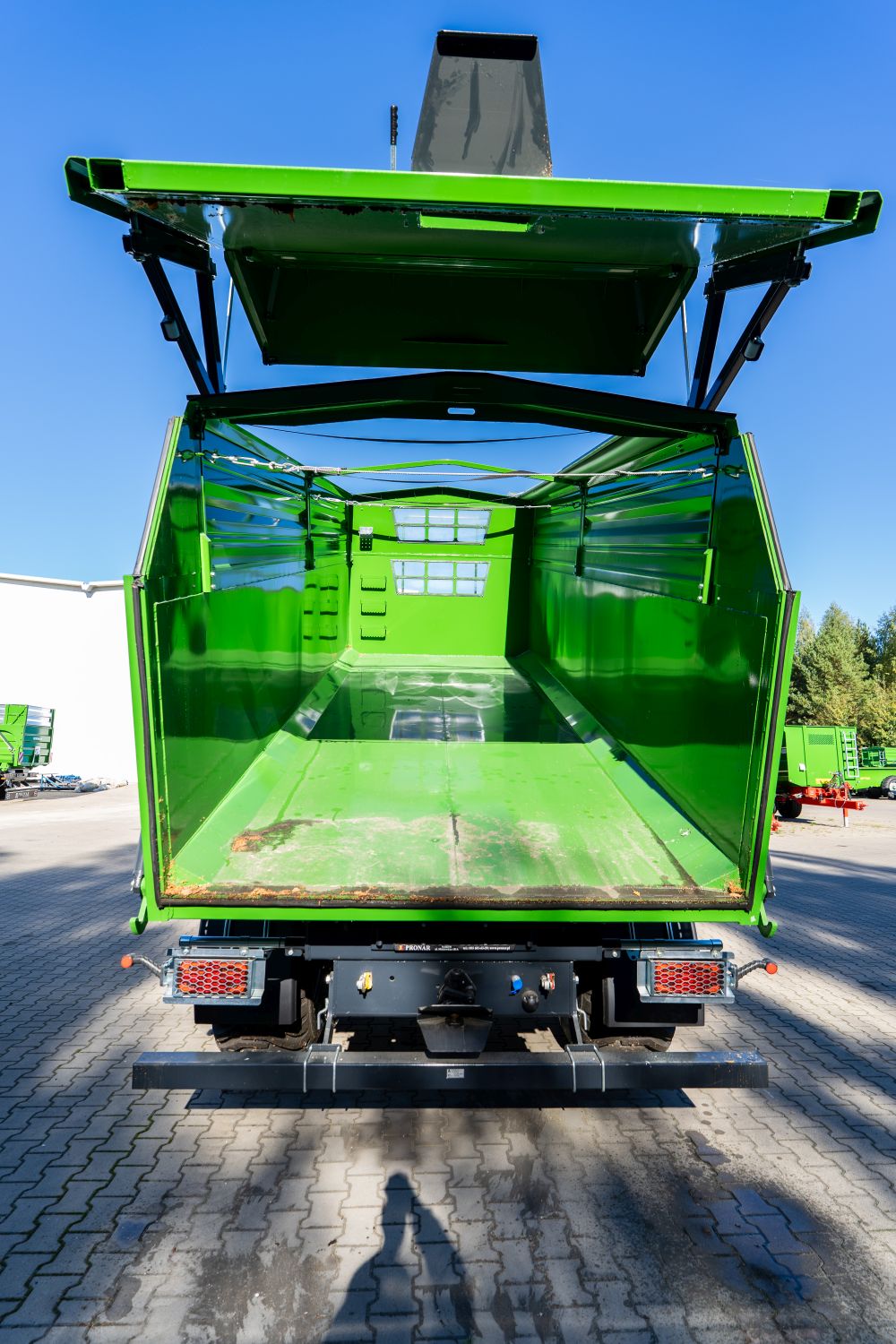

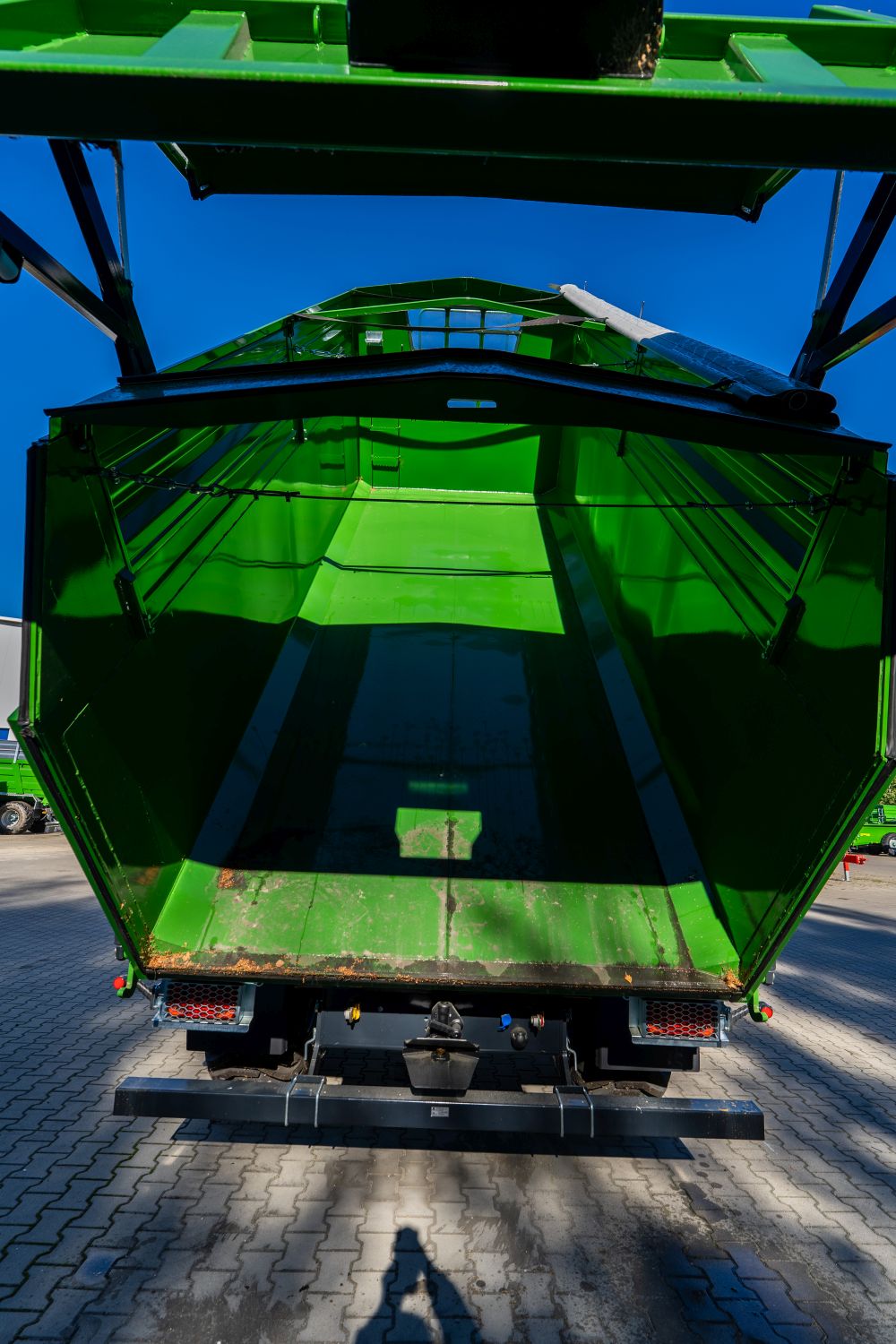

| Hydraulically winched tailgate with automatic pressing system | ||

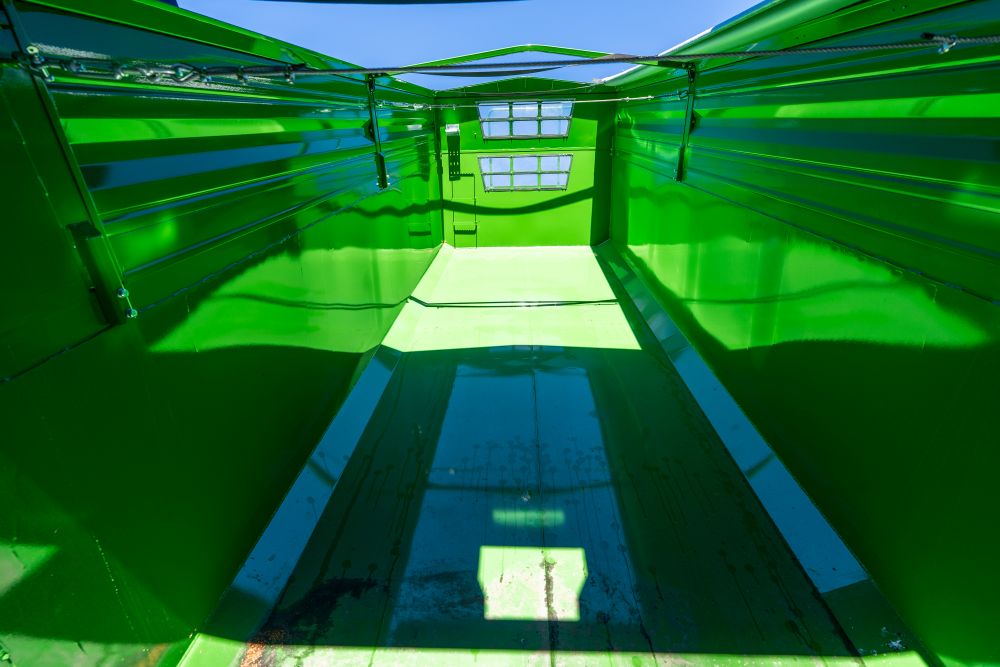

| 2 windows on the front wall of the loading case made of plexiglass | ||
| Chassis frame made of hight strength steel with rectangular closed profiles | ||
| Tandem suspenssion with 4 parabolic springs with 1325 mm wheelbase with fixed axles equipped in drum brakes 406×120 | ||
| Grain hatch with lever in a rear wall | ||
| Folded ladder and steps facilitating the access to the loading case | ||
| Sidewall extensions height 580 mm made of steel 2mm thickness with stabilizing bar | ||
| Axles for 60 km/h (permissible total weight 20 000 kg) | ||
| Drawbar type: universal rigid to couple with lower or upper hitch of the tractor with rubber shock absorbers | ||

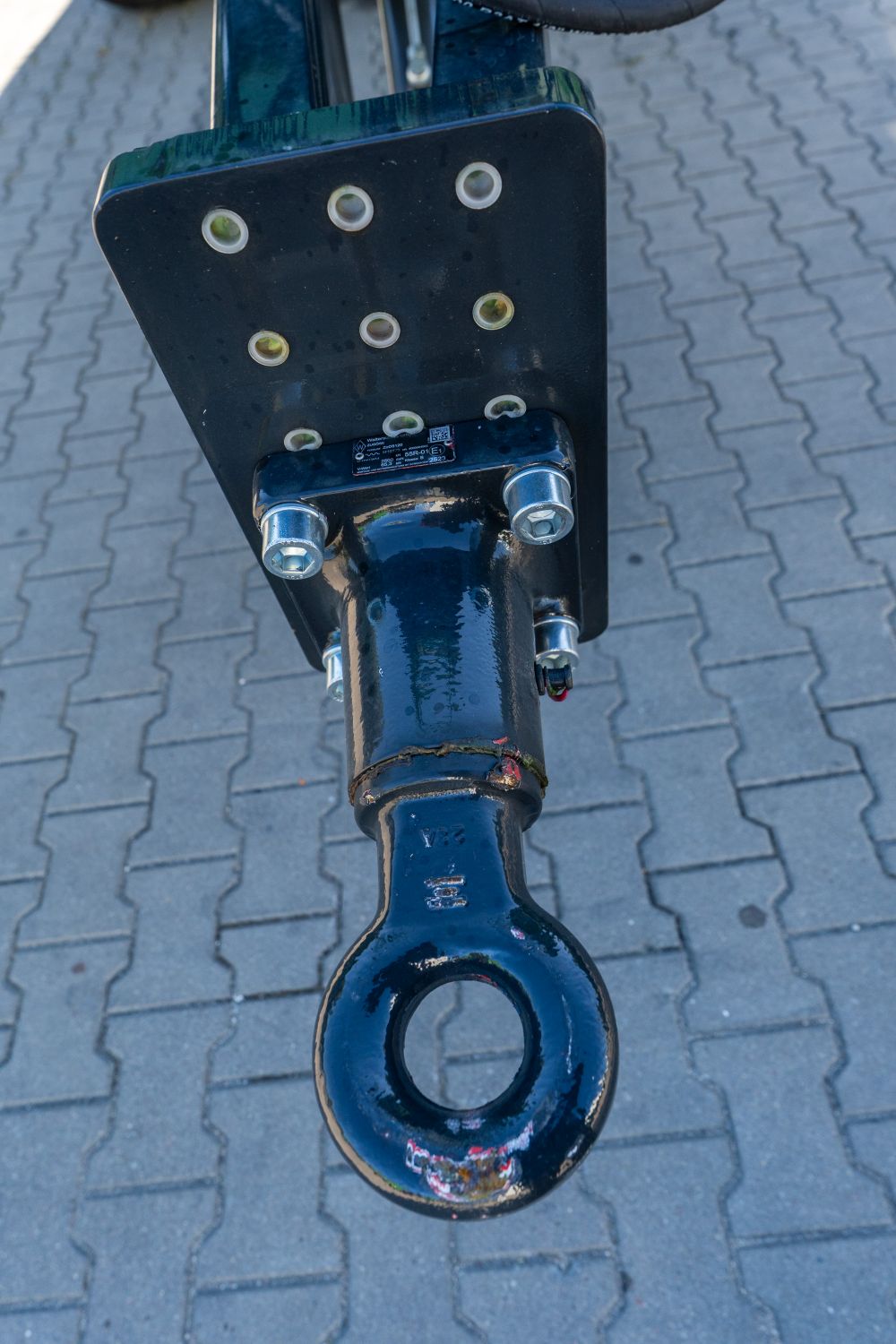

| Drawbar hitch: rotary with Ø50 towing eye | ||

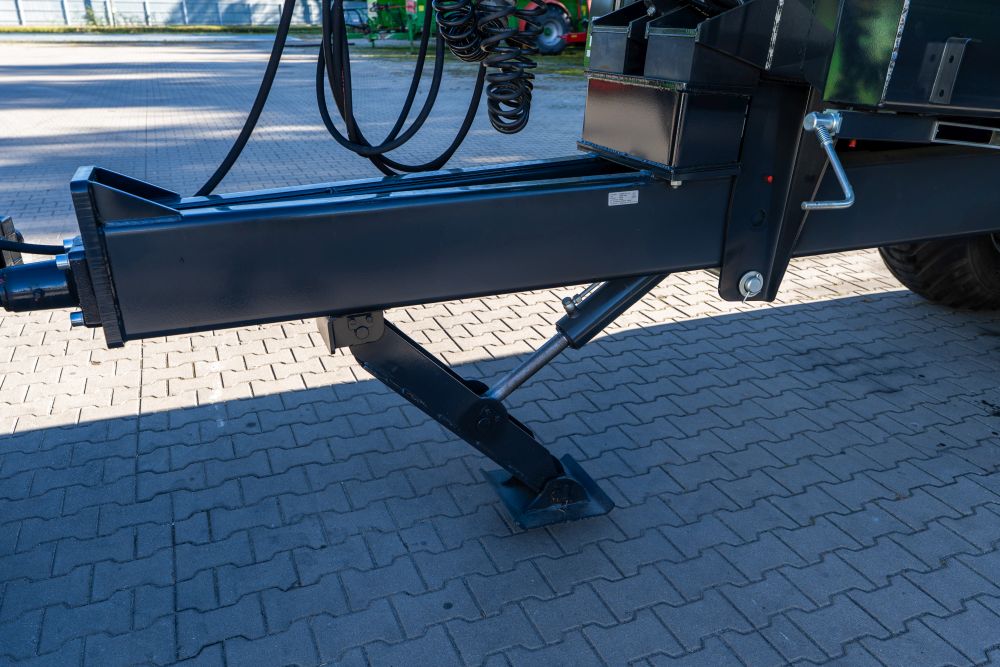

| Drawbar support: hydraulic scissor-type with movable leg and hydraulic security lock | ||

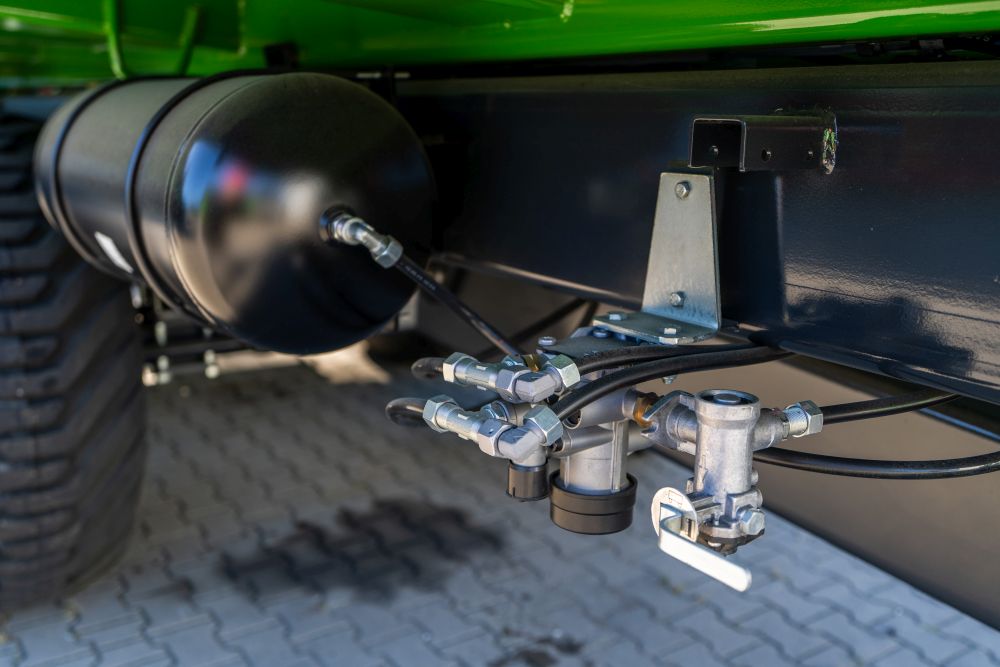

| Braking system: double line air | ||
| Crank hand brake | ||
| Rear foldable underrun protection | ||
| Rear mudguards made of plastic | ||
| Wheel chocks + racks (2 pcs) | ||
| 12 V lighting system with rear electric socket, side clearence lights | ||
| Rear lamps with protective grating | ||

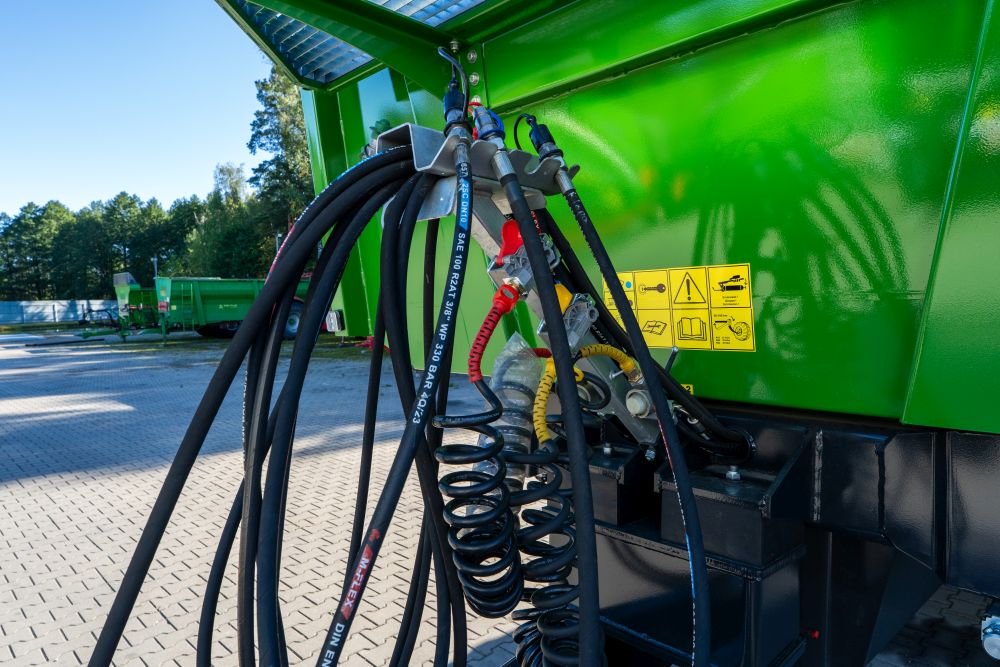

| Hydraulic cables holder with a support for tractor connectors | ||
| Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables | ||
| Mechanical support of the loading case | ||
| Double-component chemically hardened painting materials, UV-resistant | ||
| Loading case painting colour: green RAL 6010 PRONAR | ||
| Loading case painting colour: green RAL 6010 PRONAR | ||
| Additional equipment (optional) | |
| Drawbar hitch: fixed with Ø40mm towing eye in accordance to DIN11026 to couple with upper hitch of the tractor | |
| Drawbar hitch: fixed ball-type K80mm to couple with lower hitch of the tractor | |
| Design and build with 3 tones hitch ring load, fixed to couple with lower or upper hitch of the tractor, amortised with steel spring and with telescopic drawbar support with a gear | |
| Passively steered rear axle with hydraulic turning blockade | |
| Braking system: double line air with automatic (ALB) | |
| Rear sockets for hydraulic installation and brakes for second trailer | |
| Rear underrun protection homologated according to directive WE type, foldable | |
| Rear grain chute | |
| Sidewall extensions height 580mm made of steel 2mm thickness and front wall extansion made of wire mesh 30×30 window, with steel blanking plate, with stabilizing bar | |
| Sidewall extensions height 1000mm (instead of 580mm) increasing load volume up to 27,7m3, made of steel 2mm thickness and folded front wall extansion made of wire mesh 30×30 window, with stabilizing bar | |
| Rear automatic hitch UNIMAR | |
| Rear automatic hitch RO*400A4600 | |
| Operator’s platform for side walls extensions with height 580mm | |
| Rolled canvas cover with a frame for walls extensions with height 580mm | |
| Front mudguards | |
| Side underrun protection | |
| Tool box | |
| Tyres 385/65 R22.5 (15R22.5) | |
| Tyres 425/65 R22.5 (16.5R22.5) | |
| Tyres 445/65 R22.5 (18R22.5) | |
| Tyres 500/60-22,5 | |
| Tyres 500/60 R22.5 | |
| Tyres 550/60-22.5 | |
| Tyres 560/60 R22.5 | |
| Tyres 600/50-22.5 – the width of the trailer exceeds 2550mm | |
| Tyres 600/50R22.5 – the width of the trailer exceeds 2550mm | |
| Tyres 600/55-22.5 – the width of the trailer exceeds 2550mm | |
| Tyres 600/55R22.5 – the width of the trailer exceeds 2550mm | |
| Spare wheel (separately) 385/65 R22.5 (15 R22.5) Regenerated | |
| Spare wheel (separately) 385/65 R22.5 (15 R22.5) | |
| Spare wheel (separately) 425/65 R22.5: | |
| Spare wheel (separately) 445/65 R22.5: | |
| Spare wheel (separately) 500/60 R22.5: | |
| Spare wheel (separately) 550/60-22.5: | |
| Spare wheel (separately) 500/60-22,5 | |
| Spare wheel (separately) 560/60 R22.5: | |
| Spare wheel (separately) 600/55-22.5: | |
| Spare wheel (separately) 600/50-22.5: | |
| Spare wheel (separately) 600/50 R22.5: | |
| Warning triangle | |
| Shock absorber for falling potatoes – two sets of rubber belts, 2,3m of length each, mounted on the sidewall extensions (side extensions necessaary) | |
| Non standard colours according to RAL CALSSIC codes * | |
| * doesn’t aply for units on stock |
