Trailer PRONAR PT608

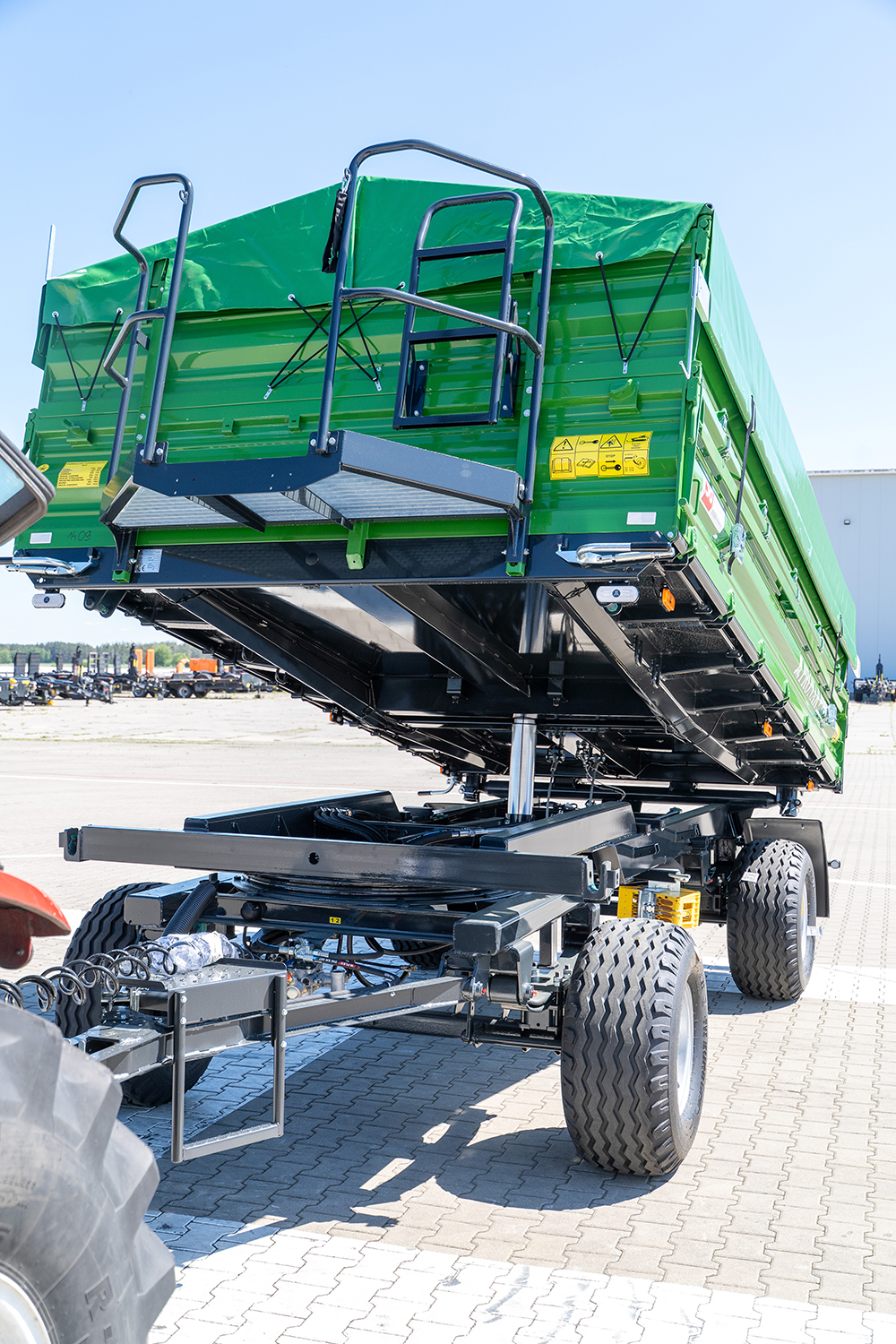

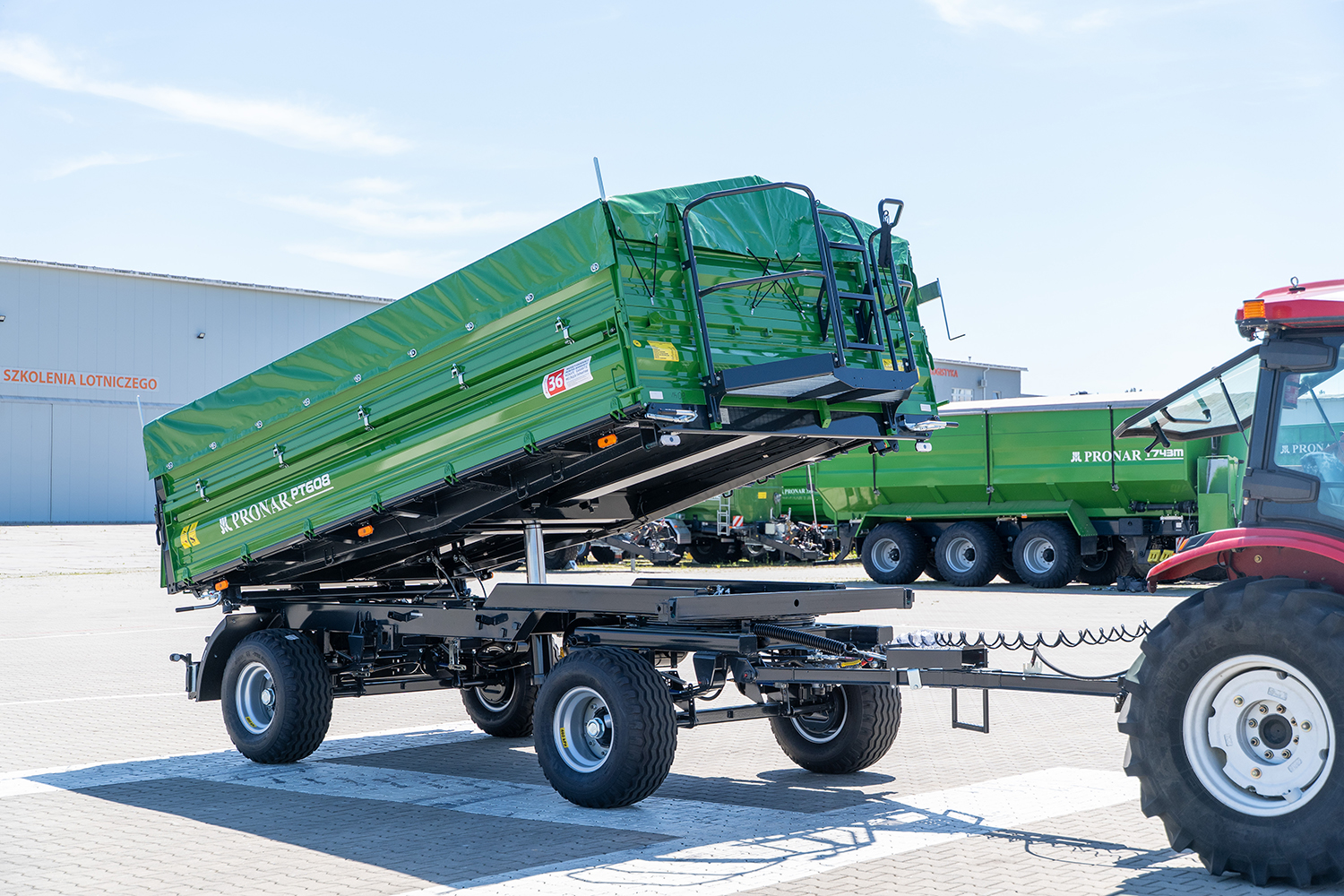

PT608 pallet trailer is a trailer which can fit euro pallets. Tipping system is used to easily transport the boxes from the plantation to the storage, transfer site and transport bales of 1.2m width. Box shape of the loading case a makes it excellent to transport of bulk materials and many other products. The company Pronar PT608 during the manufacturing process uses advanced profiling technology and laser welding of the metal that guarantees precision and accuracy of production. PT608 is a trailer with a total weight 11 600kg with a mechanism of trilateral tipping. In the trailer the user can fit 10 euro pallets. Design trailer speed is 40km / h. The standard trailer is well equipped, with pneumatic, hydraulic and electrical system outputs as well as many more. The buyer has many options available to choose from.
-
1UNIVERSALInner width of the loading case (2.42 m), which allows transporting of bulk materials and typical loading euro pallets.
-
2AESTHETICALThe use of forging locks on both side of the walls. Increased number of hinges on each side of the trailer provides accurate closing of the sidewalls.
-
3EASY FOR LOADINGLow-lying trailer allows easy access to cargo, and the tension blades make the loading easier.
-
4SOLIDA chassis made of closed profiles with high strength ensures a solid construction. Also the trailer has parabolic springs – lighter and stronger than leaf springs.
-
5WELL-EQUIPPEDStandard on this trailer are wheel chocks, rear wheel fenders, ladders and a gradual drop-side for easy access to the cargo box, rear electric sockets, hydraulic and pneumatic and security grilles at the rear beam lamps.
| Technical data* | ||
| Permissible total weight: | 11600 | [kg] |
| Load capacity: | 8460 | [kg] |
| Empty weight: | 3140 | [kg] |
| Load volume: | 11 | [m 3] |
| Loading space: | 11 | [m 2] |
| Loading case inside lenght: | 4545 | [mm] |
| Loading case inside width: | 2420** | [mm] |
| Dimensions: length/width/height: | 6720/2550/2300 | [mm] |
| Sidewall height: | 500+500 (option) | [mm] |
| Floor/wall thickness: | 4/2 | [mm] |
| Platform height, measured from the ground: | 1220 | [mm] |
| Wheel track: | 1900 | [mm] |
| Suspension: | parabolic springs | |
| Tyres: | 14.0/65-16 | |
| Maximum speed: | 40 | [km/h] |

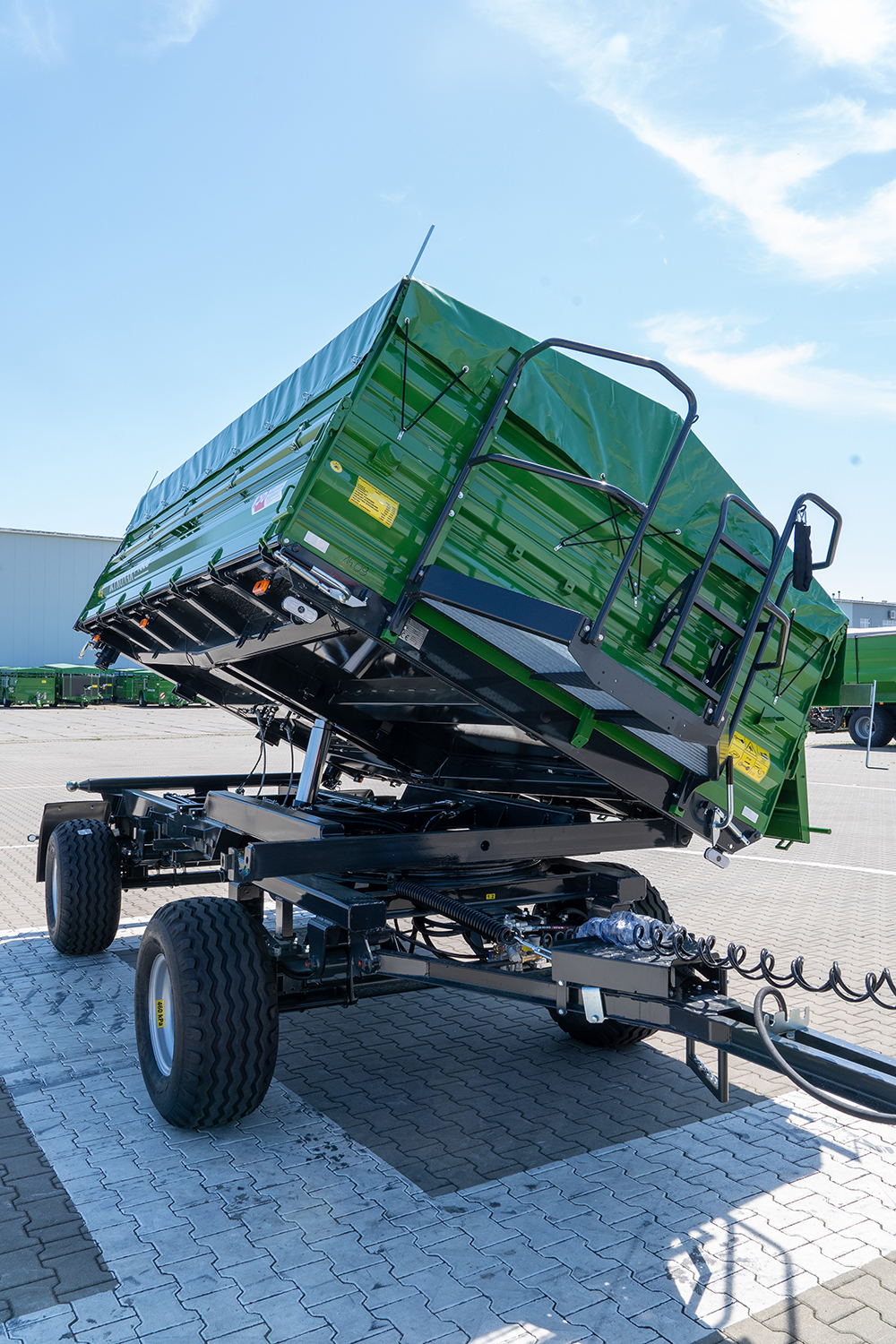

| Tipping system: | 3-side | |

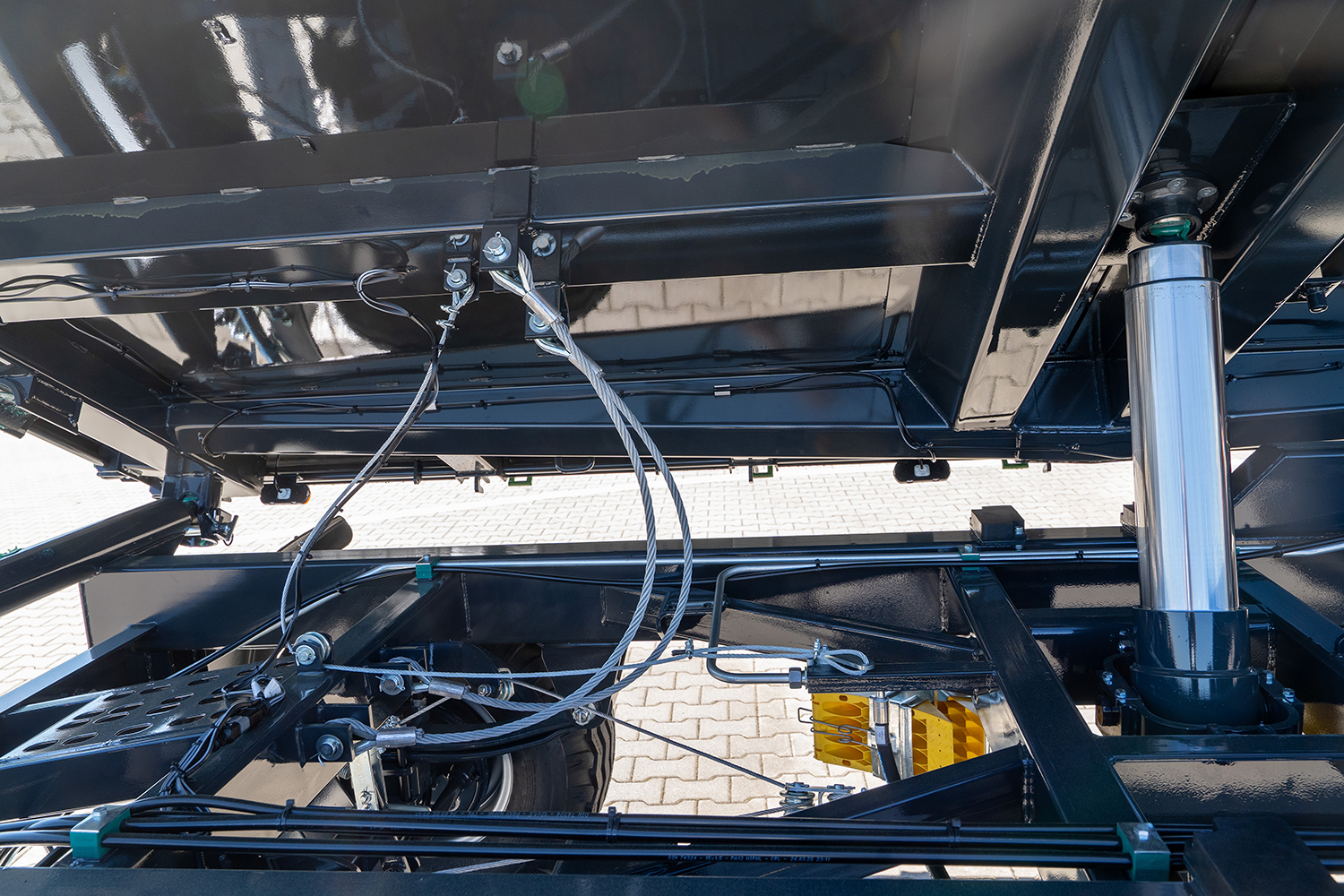

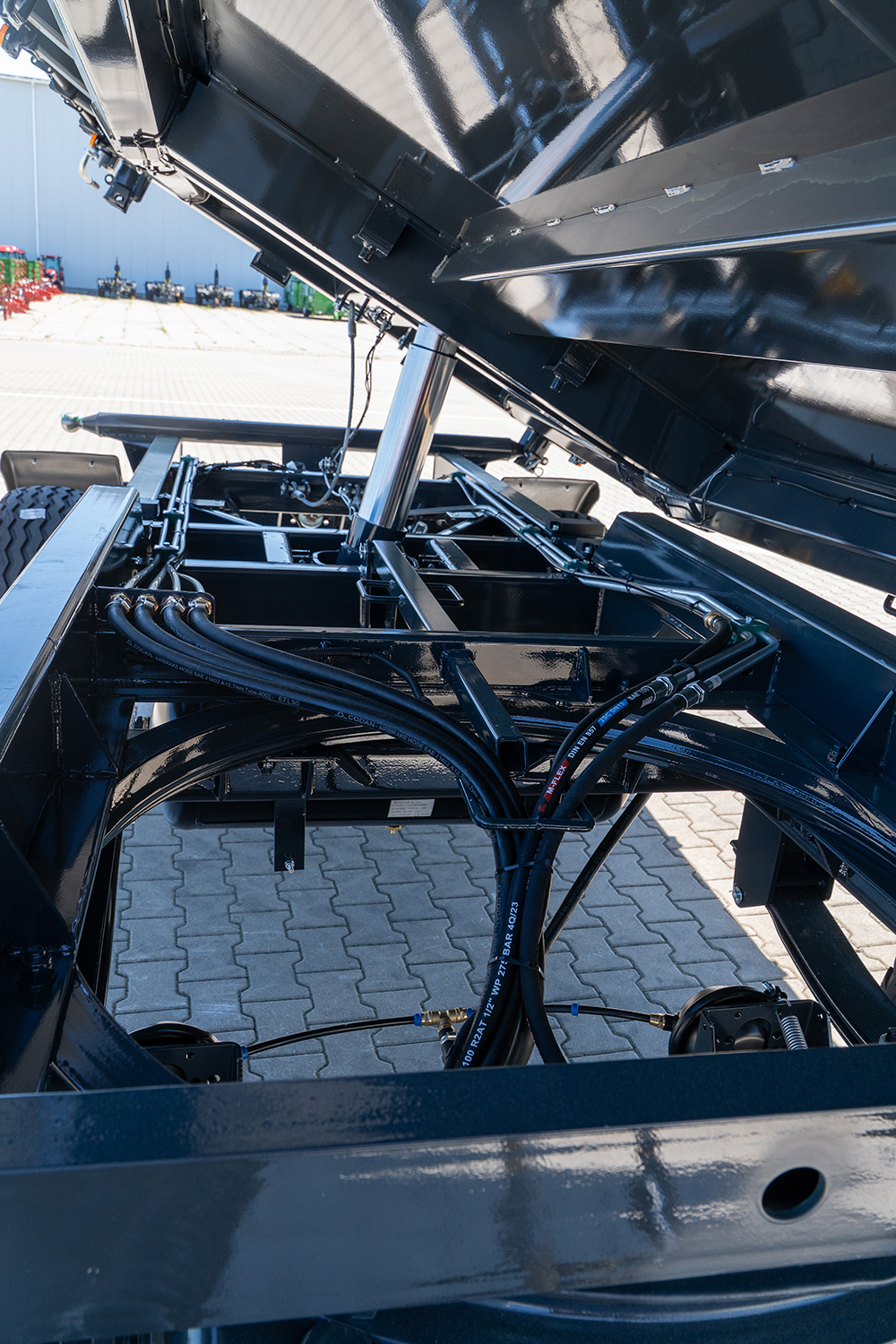

| Tipping cylinder (piston stroke/oil requirement/working pressure): | 1700mm/13L/200bar | |
| Tractor power requirement: | 62.4/45.8 | [hp/kW] |
| Tipping angle (backwards/sides): | 50/46 | [˚] |
| * technical data for side walls and extensions 500+500mm | ||
| ** width of the loading case suitable for EUROPALET transport | ||
| Standard equipment | ||
| Loading case with universal system of sidewalls opening | ||
| Reinforced floor pan with walls central locking system | ||
| Chassis frame made of rectangular closed profiles | ||
| Drawbar V type: rigid with Ø40 towing eye | ||
| Rotating turnable | ||

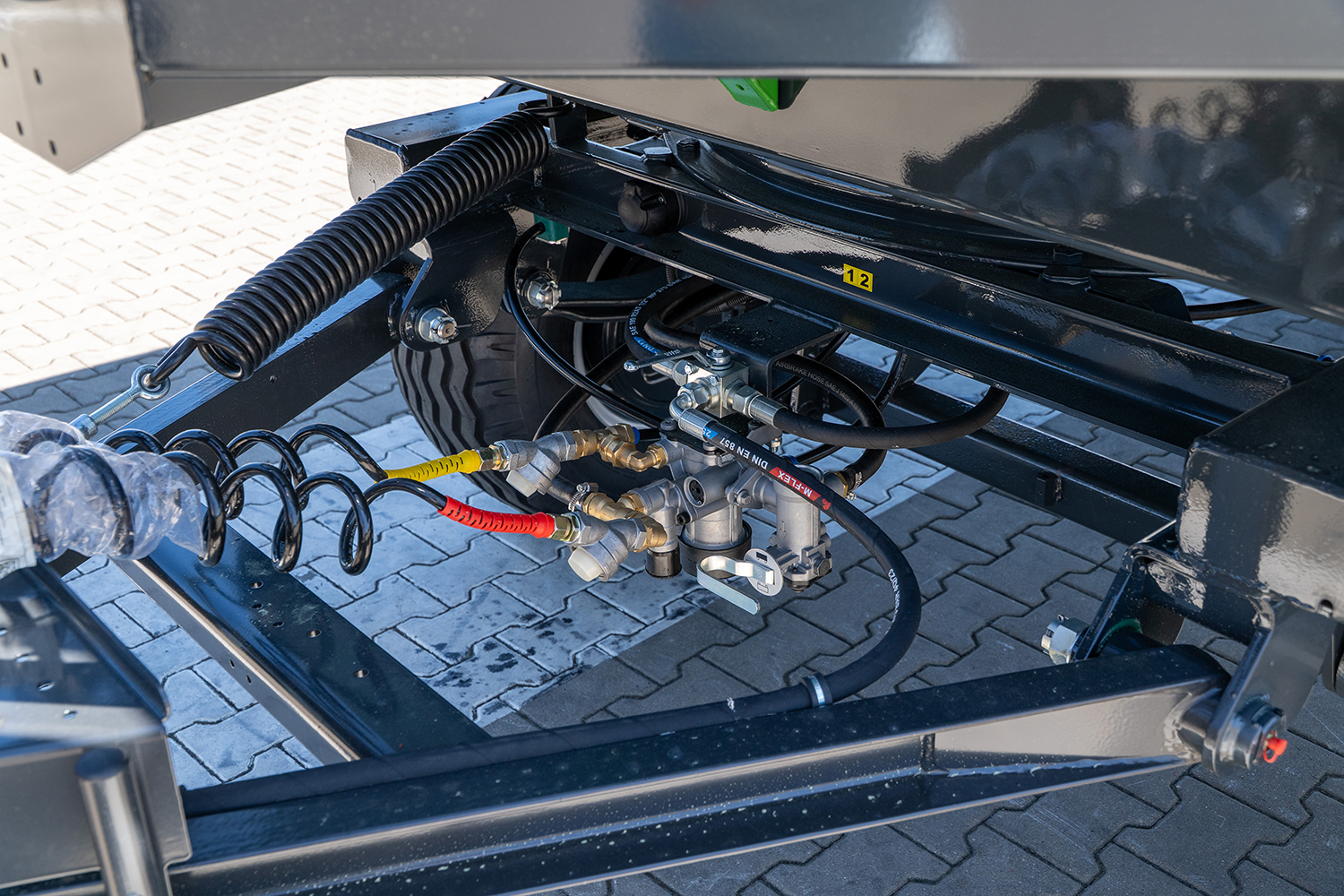

| Braking system: single line air or double line air or hydraulic | ||
| Parking brake with crank | ||
| 12 V lighting system with rear electric socket | ||

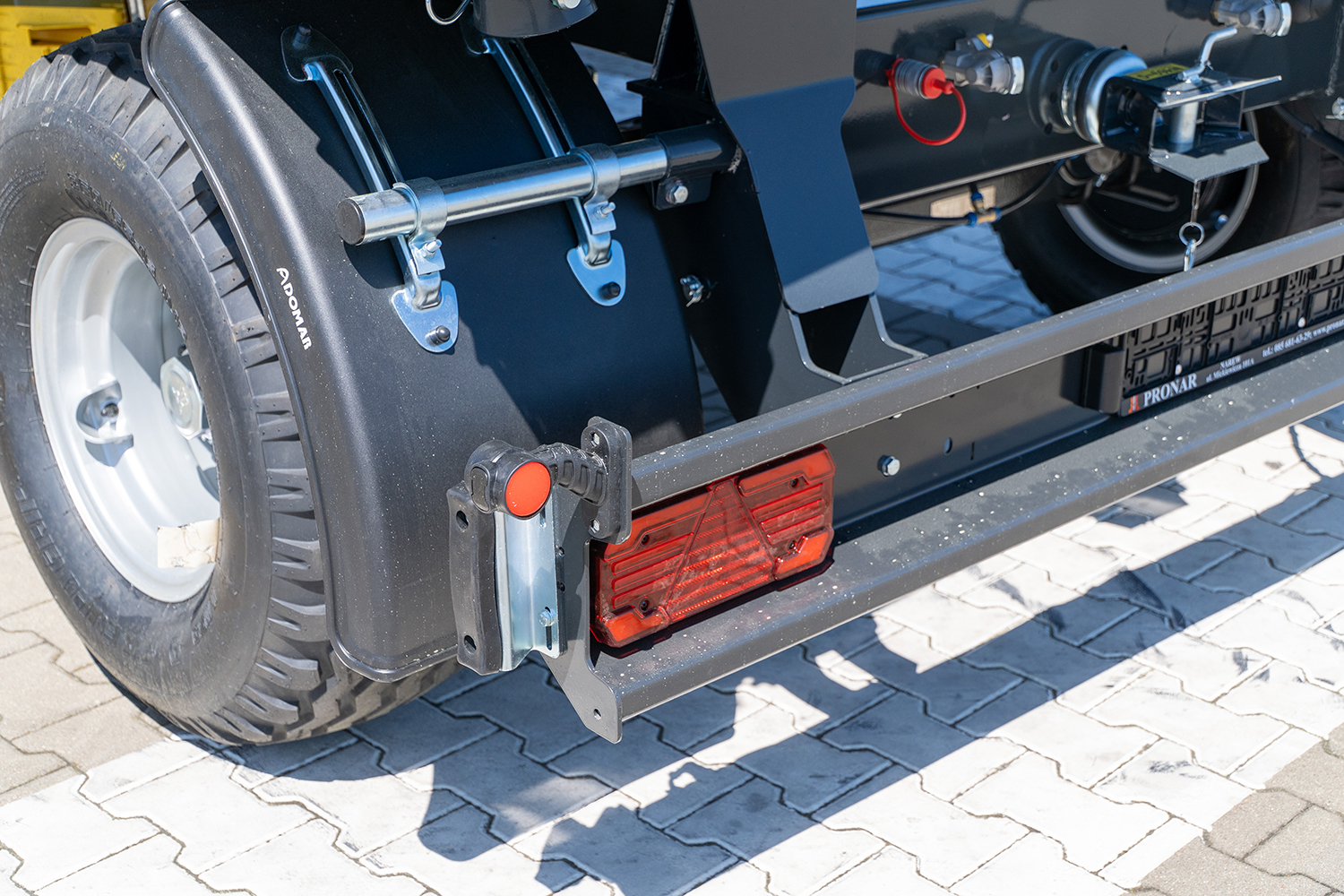

| Rear lamps with protective grating | ||
| Coiled connecting cable lighting system | ||
| Rear manual hitch, amortized | ||
| Rear coupling for second trailer | ||
| Tipping system with cut-off valve | ||
| Three side tipping cylinder | ||
| Side walls made of PRONAR profiles 500mm with rim 60mm with forged hinges and locks | ||
| Rear mudguards | ||
| Rear grain hatch with a lever in a rear wall | ||
| Wheel chocks + racks (2 pcs) | ||
| Ladder and steps facilitating the access to the Loading case | ||
| Tension slat of the sidewalls | ||
| Chassis color red RAL3000 PRONAR | ||
| Sidewalls color green RAL6010 PRONAR | ||
| Double-component chemically hardened painting materials, UV-resistant | ||
| Rear lamps with protective grating | ||
| Loading case adapted to transport europallets | ||
| Mechanical support of the Loading case | ||
| Additional equipment (optional) | |
| Drawbar V type: fixed with Ø50 towing eye | |
| Drawbar Y type: fixed with Ø40 towing eye | |
| Drawbar V type: L-2100 with Ø40 towing eye | |
| Drawbar Y type: L-2100 with Ø40 towing eye | |
| Braking system: double line air with ALB (automatic braking force control) | |
| Rolled canvas cover with frame with demountable central pipe and lateral supporting pipes | |
| Operator’s platform | |
| Sidewalls extension made of profile PF 500mm with rim 60mm | |
| Middle sidewall extension made of profile PF 500mm | |
| Rear grain chute | |
| Springs supporting opening of the sidewalls | |
| Rear automatic hitch UNIMAR | |
| Rear automatic hitch RO*400A4600 | |
| Tension bars of the sidewall extensions 2pcs. | |
| Tyres 12.5/80-18 | |
| Tyres 15.0/70-18 | |
| Tyres 385/55 R22.5 | |
| Tyres 385/55 R22.5 RE | |
| Spare wheel (separately) 14.0/65-16 | |
| Spare wheel (separately) 12.5/80-18 | |
| Spare wheel (separately) 15.0/70-18 | |
| Spare wheel (separately) 385/55 R22.5 | |
| Spare wheel (separately) 385/55 R22.5 RE | |
| Front mudguards | |
| Additional rear plastic mudguards | |
| Tool box | |
| Side underrun protections | |
| Warning triangle | |
| Auger for unloading grain with efficiency of 30 t/h *** | |
| Crank operated spare wheel winch situated under the frame of the trailer | |
| Rear grain chute across width of the trailer | |
| Foldable left or right chute along the entire length of the loading case | |
| Foldable left and right chute along the entire length of the loading case | |
| Set of wall supports to maintain the walls in a partially open position for bale transportation**** | |
| Shock absorber for falling potatoes – two sets of rubber belts, 1,8m of length each, mounted on the sidewall extensions (side extensions necessaary) | |
| Non standard colours according to RAL CALSSIC codes | |
| *** mounted on the rear wall, two-segmented, folded, with mechanical winch, auger driven hydraulically, oil requirement 30L/min | |
| **** for agricultural roads only | |
