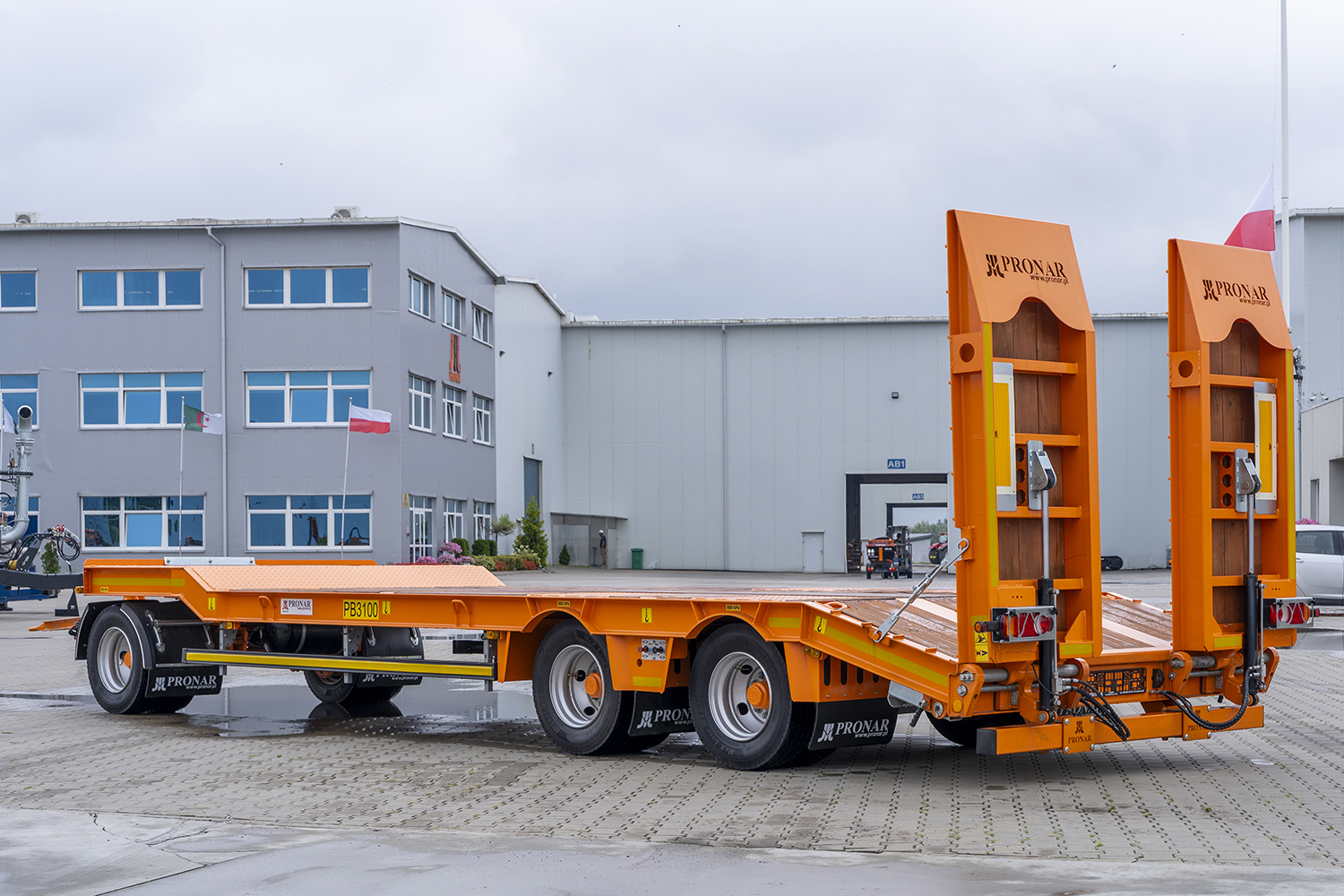

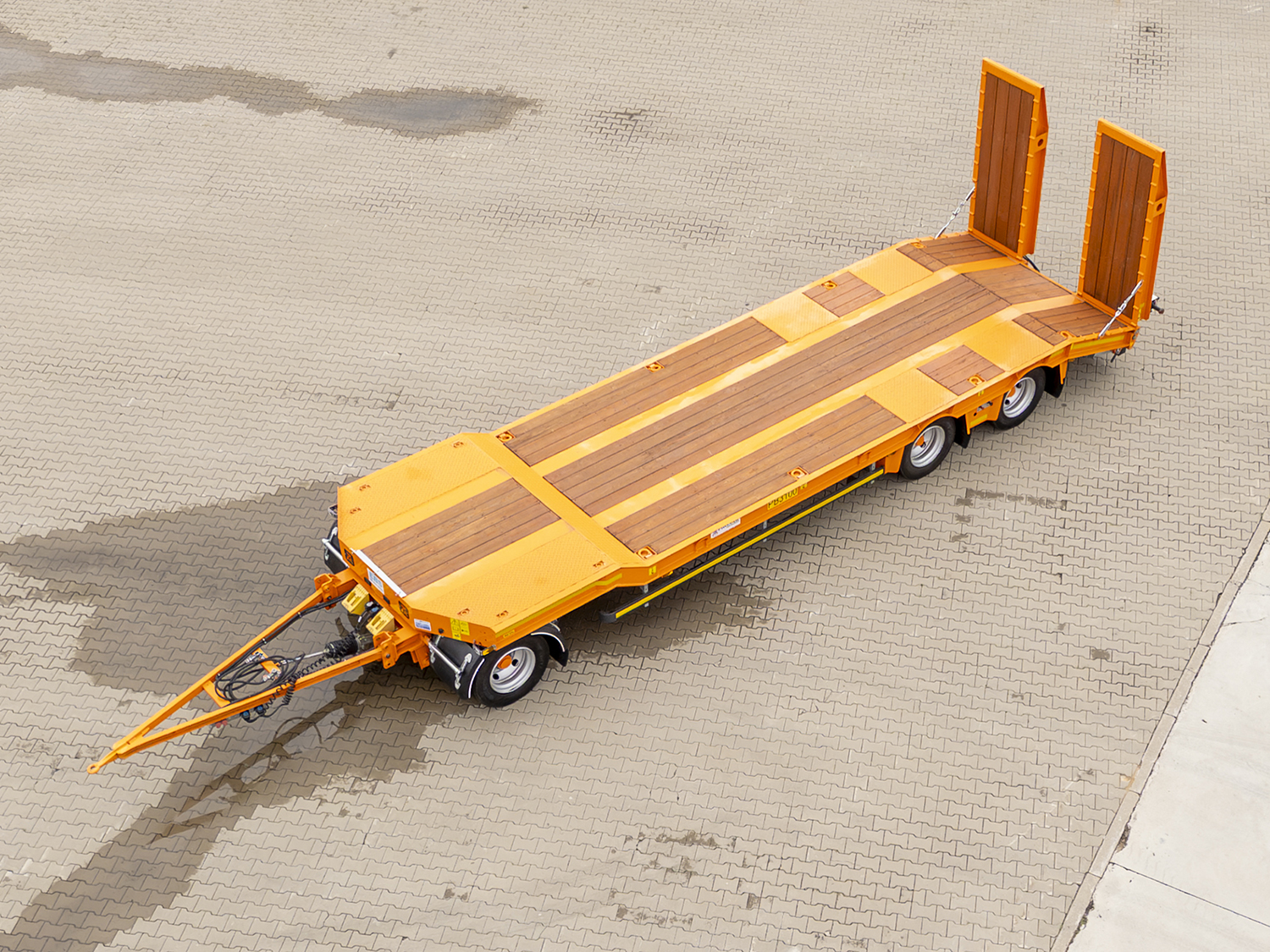

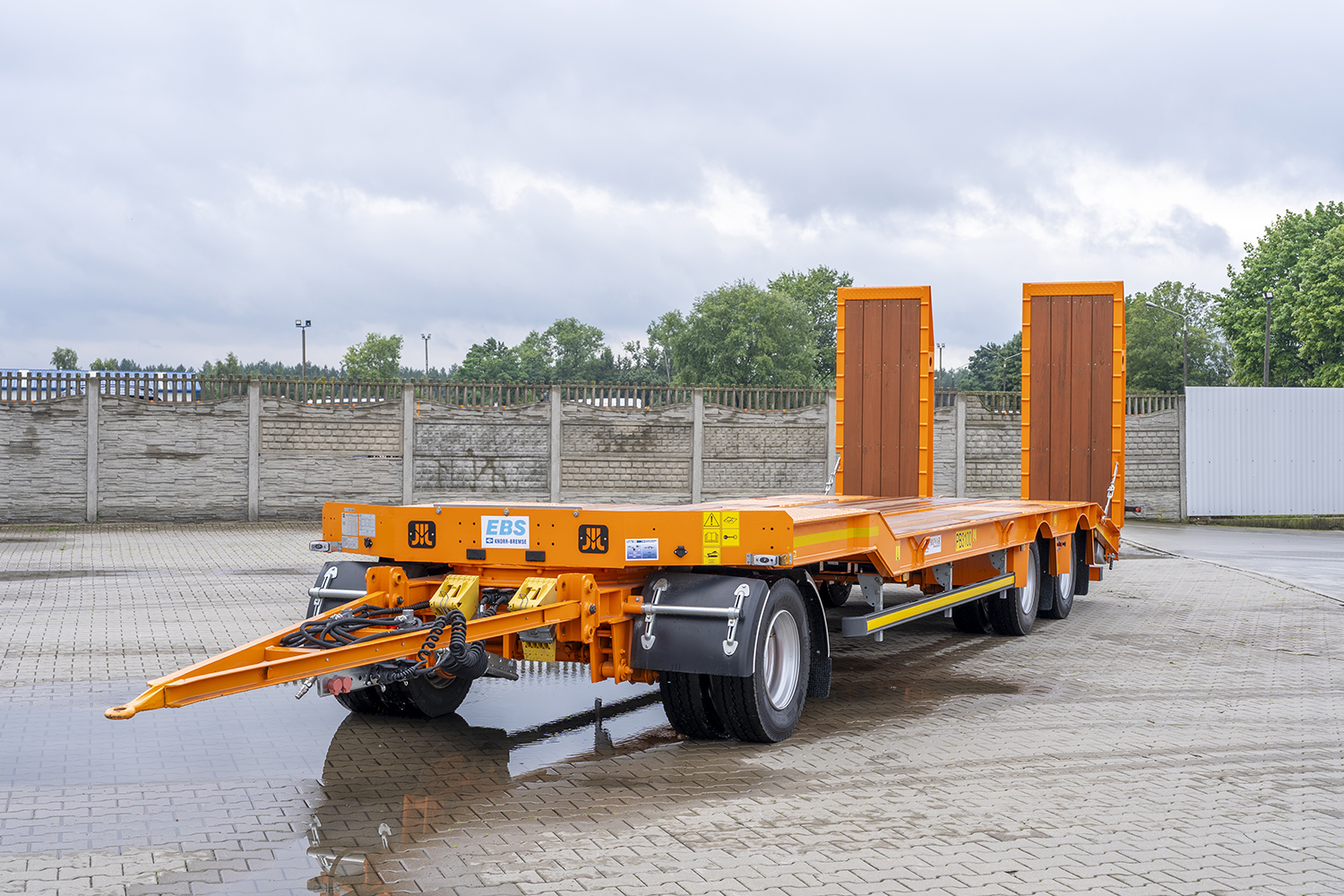

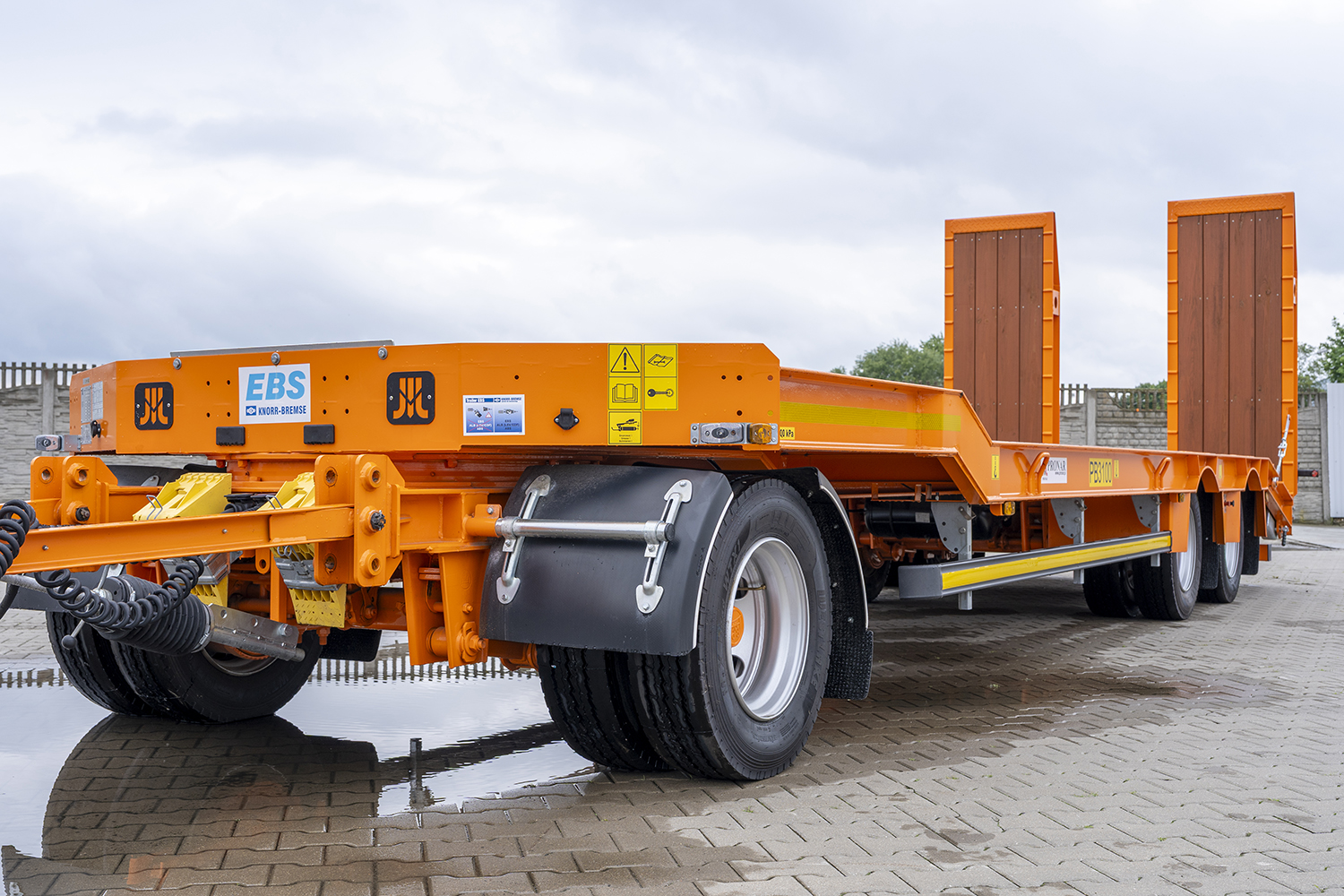

PRONAR trailer PB3100

Extremely strong and functional low loader trailer PRONAR PB3100 is designed to transport agricultural and construction machinery and cargo that can be properly secured against moving during transport (cargo placed in containers, containers, pallets, etc.). high flexural strength of the structure. The braking system comes standard with EBS with RSP function, improving vehicle stability, parking valve with emergency brake function and loosening the valve first axis.

  1. 1
    SIMPLE LOADING AND UNLOADING

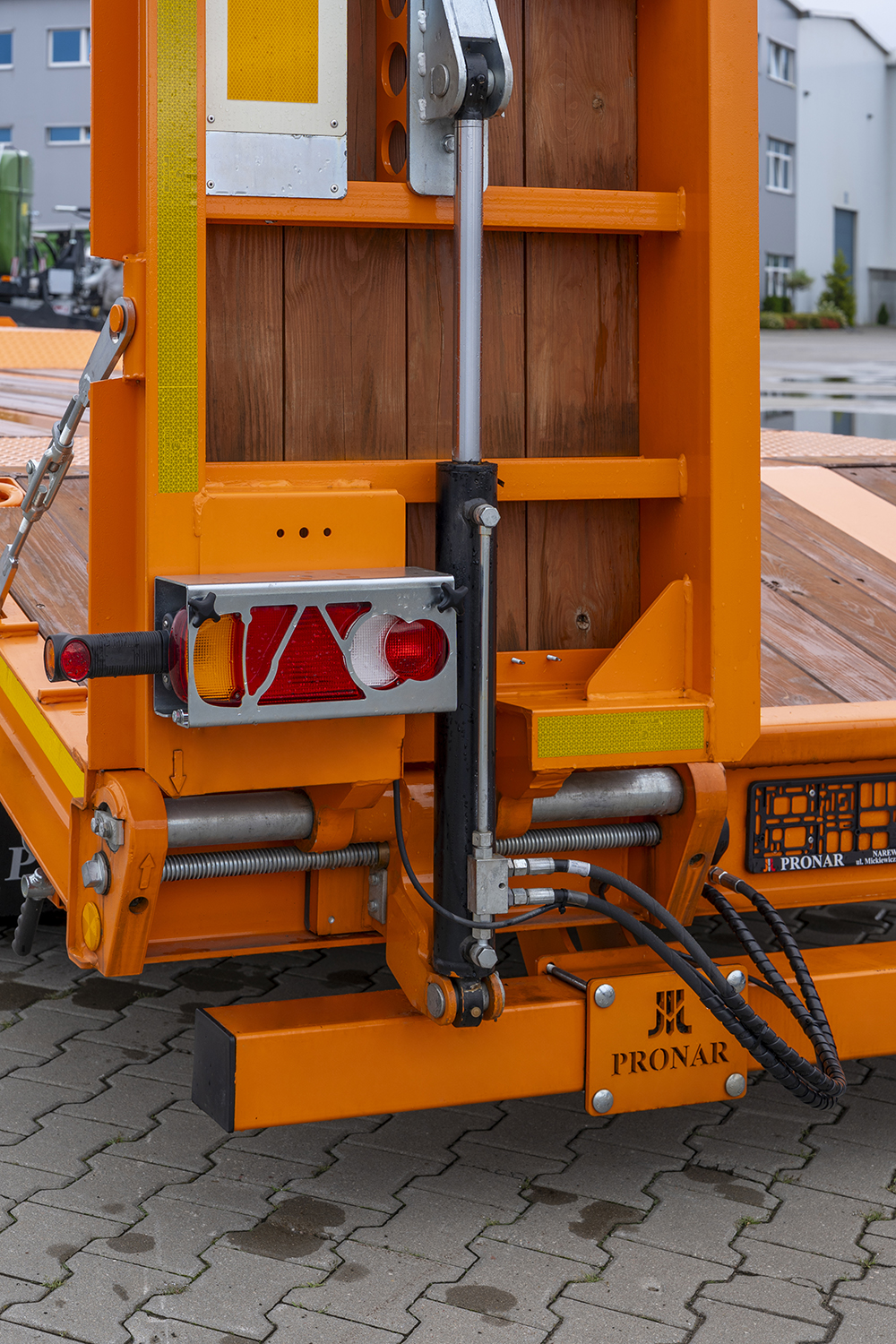

    Hydraulic system of lowering and raising ramps.
  2. 2
    STRONG CONSTRUCTION
    The structure of the trailer is based on an l-beam section profile, densely ribbed with crossbeams.
  3. 3
    CAPABILITY TO TRANSPORT TALL MACHINES
    Thanks to small space between the floor and the road surface.
  4. 4
    CAPABILITY TO TRANSPORT WIDE MACHINES
    Thanks to use widenings of the loading space.
  5. 5

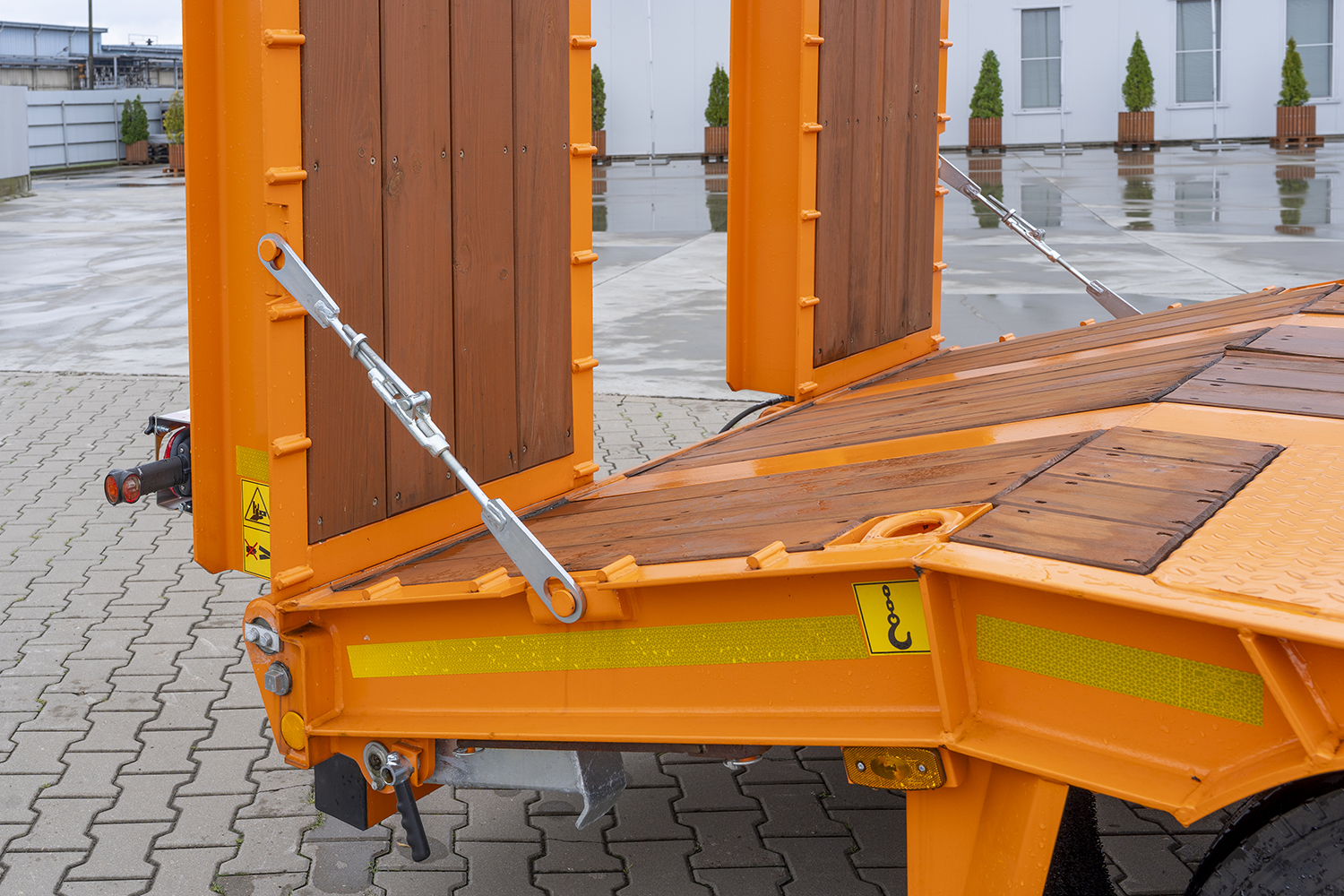

    WIDTH CONTROL RAMPS
    The possibility of moving ramps to machines with narrow or wide wheelbase.
Allowable total weight (on road): 24000 [kg]
Technically permissible total weight: 27000 [kg]
Load capacity (on road): 18000 [kg]
Load capacity (construction): 21000 [kg]
Empty weight: 6000 [kg]
Loading space of the straight part of platform (+ widening): 16.5 (+ 3) [m 2]
Loading space of the complete platform (+ widening): 20.5 (+3) [m 2]
Length of the straight part of the platform: 6500 [mm]
Length of the complete platform: 8500 [mm]
Length of ramps: 2200 [mm]
Ramps angle: 15 degrees
Width of floor: 2540 [mm]
Width of floor with widening: 3000 [mm]
Overall dimensions (length/width/height): 11500/2550/2750 [mm]
Floor material: wooden planks 45 mm [mm]
Platform height, measured from the ground: 900 [mm]
Drawbar towing eye height: 830 [mm]
Axles: BPW
Number of axles: 3 [pcs]
Axle load (on road): 8000 [kg]
Axle load (construction): 9000 [kg]
Braking system: pneumatic with EBS
Suspension: mechanical BPW
Tyres: 235/75 R17.5 (143/141J)
Maximum speed: 100 [km/h]
Hydaulic ramps: yes
Loading hitches: 14 [pcs]
Side barriers: yes

Standard equipment
Floor: wooden planks 45 mm
Axles: 3 x 9t (BPW)
Drum brakes
ABS (on 2 axles)
Mechanical suspension (BPW)

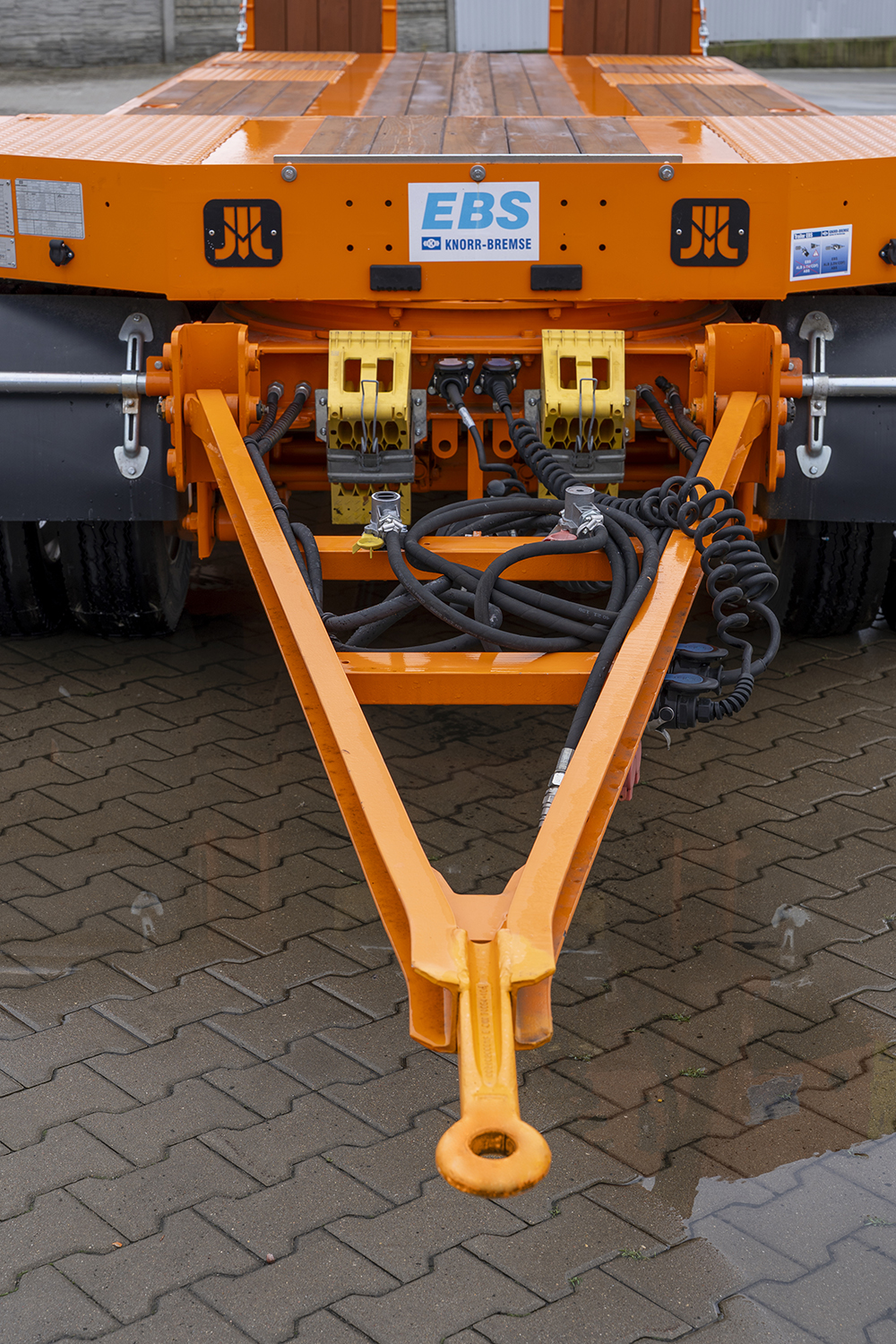

Pneumatic brakes with EBS: Knorr-Bremse
Pneumatic hand brake
Additional power to the EBS system via “stop” lights
Tyres 235/75 R17,5 – 143/141J (12 pcs)
Drawbar hitch: Ø40
Drawbar length: 2400 mm
Electric 24V system in accordance with 48 EKG ONZ
Side underrun protection in accordance with 89/297/EWG
Hydraulic ramp lowering/winching system
Ramps witdth regulated mechanically
Mudguards
Mudflaps accoring with 91/226/EWG
Fastenings handles in the floor, 14 pieces
Wheel chocks + racks
Rear support legs, 2 pcs
Clearence markings
Reflection boards
Double-component chemically hardened painting materials, UV-resistant.

Floor: oak 45mm
Spare wheel + basket
Reflection boards for overdimension loading (with clearence lights)
Beacon light
Tool box (~ 50 l) 1 or 2 (price for one piece)
Double-sided floor widening + boards (pine/spruce)
Steel case at the front of the trailer for storing broadenings (~ 240 l)
Sidewalls at the front of the trailer – height 500mm ver I (front wall)
Sidewalls at the front of the trailer – height 500mm ver II (front wall + closing front wall)
Sidewalls at the front of the trailer – height 500mm ver III (front wall +2 sidewalls + closing rear wall)
Sidewalls at the front of the trailer – height 500mm ver IV (front wall +2 sidewalls + closing front wall + closing rear wall)
Drawbar hitch: Ø50
Hydraulic winch (winch up to 6500 kg (optional: 8000 kg))
